GA01 Series Waterproof Connector : A Reliable Interconnection Solution for Automotive Seat Sensing Systems
Within the intelligent cockpit architecture, the seat system is evolving into a multifunctional node that integrates occupant sensing, safety decision-making, and comfort control.
Pressure sensors, occupant detection modules, and various actuators must achieve stable interconnection within limited space. The quality of signal transmission directly affects the accuracy of safety strategies—such as Seat Belt Reminder (SBR) and airbag deployment—as well as overall vehicle control logic.

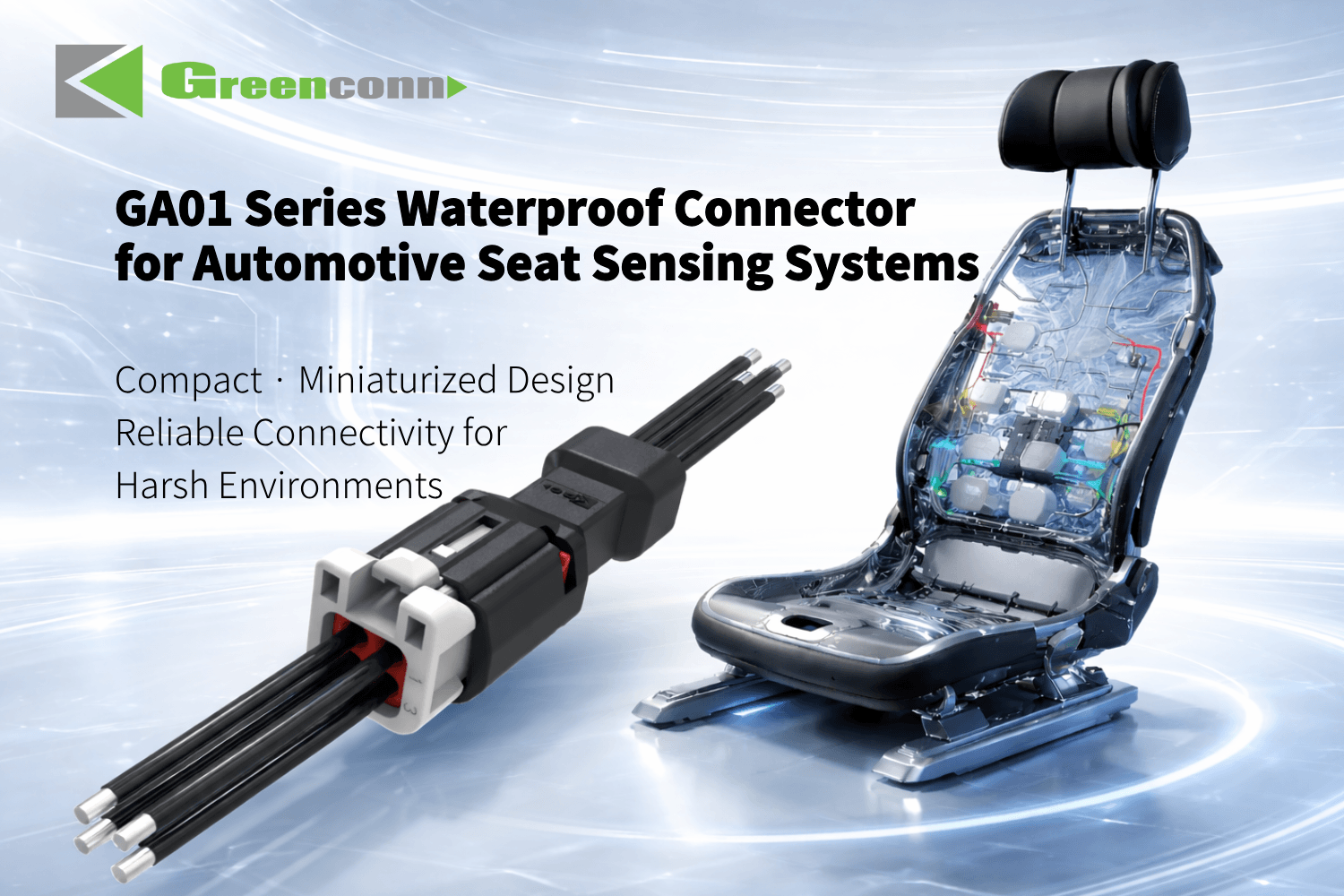

GA01 Series Waterproof Connector : Automotive Seat Sensing Systems Solution
Under such application scenarios, connectors are no longer limited to basic electrical connections. They are required to maintain stable signal and power transmission under dynamic loads and complex environmental conditions over the long term.
Connection Challenges and Engineering Constraints in Automotive Seat Sensing Systems
Compared with traditional automotive electronics, seat systems impose more demanding engineering requirements on connectors:
- Dynamic Mechanical Stress: Continuous exposure to vibration, displacement, and localized compression requires high terminal contact stability
- Space and Routing Constraints: Compact seat structures with multiple modules demand higher connector integration density
- Environmental Adaptability: Combined effects of temperature fluctuations, humidity, and dust can impact contact reliability and insulation performance
- Increasing System Complexity: Functions such as electric adjustment, heating, and ventilation raise requirements for current carrying capacity and durability
Key Features and Application Fit of GA01 Waterproof Connector Series
To address these challenges, the GA01 waterproof connector series is engineered with optimized structure, electrical performance, and environmental resilience, ensuring reliable interconnection for seat sensing systems.
- Compact Structure & Anti-Vibration Design
Optimized terminal layout and housing structure enable high-density connections in limited space; integrated locking mechanisms enhance vibration resistance and reduce contact failure risks - Stable Electrical Performance
Supports 20 AWG wires, with a rated current of 5.0 A per pin and withstand voltage up to 650V AC, meeting power and signal transmission requirements for multiple sensors and actuators - Environmental Resistance & Protection
Operating temperature range from -40°C to +105°C with IP67 protection rating, ensuring stable performance under moisture, dust, and temperature variations - Flexible Assembly & System Compatibility
Supports wire-to-wire and wire-to-board configurations, with multiple specifications available to match different wire gauges and module layouts, improving modular design and assembly efficiency

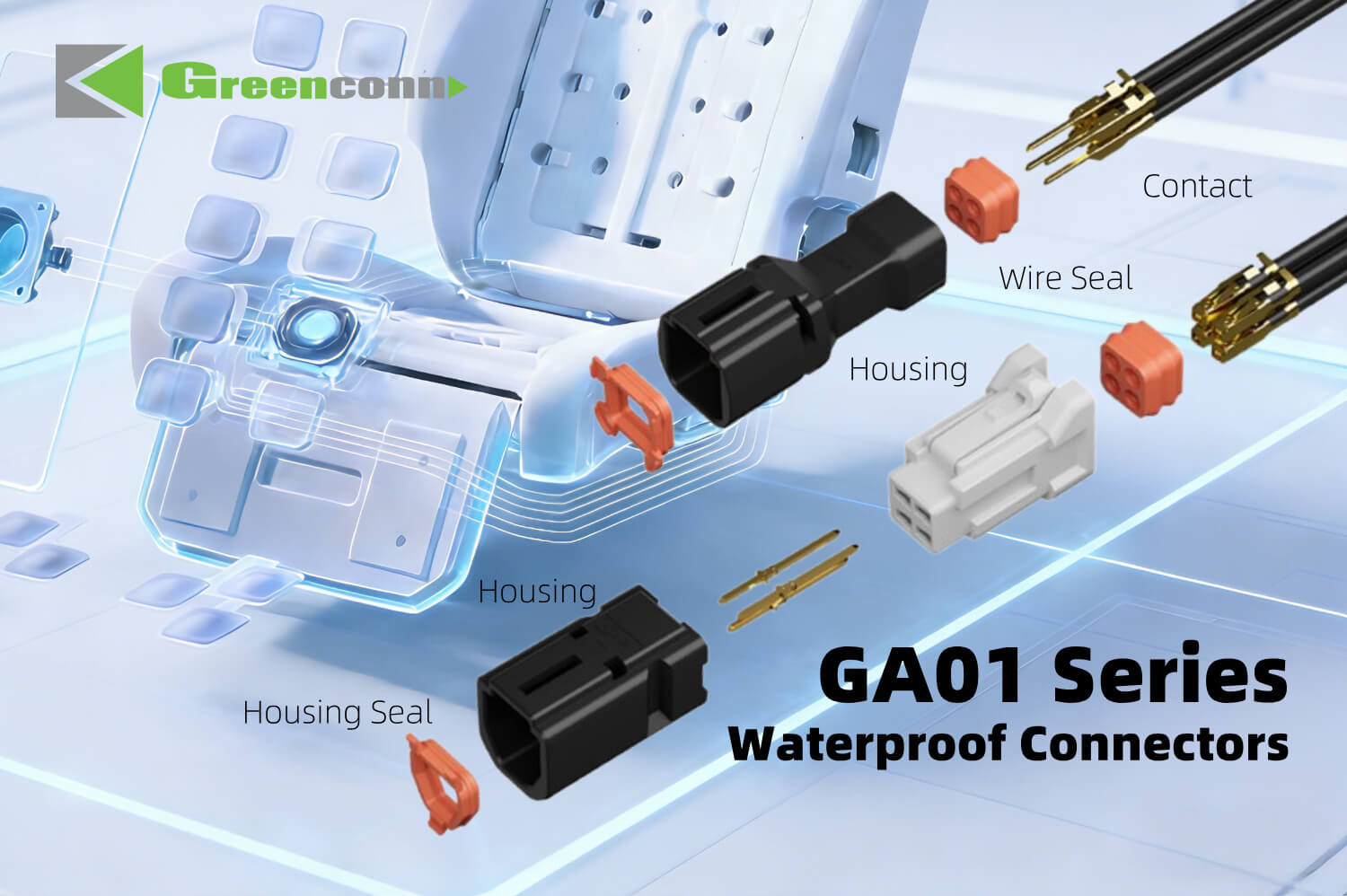

GA01 Series Waterproof Connector Structural Diagram
Evolution of Seat Systems in Intelligent Cockpit Architecture
As seat systems integrate more interactive and control functions, their role within the vehicle’s electronic architecture is shifting—from a passive component to an intelligent node with sensing and feedback capabilities.
This evolution requires connectors not only to meet current reliability standards but also to accommodate future demands in miniaturization, higher integration, and long-term stability.
The GA01 series is designed with scalability in both performance and structure, supporting continuous upgrades of seat systems under the trend of multifunctional integration.
