Greenconn GT Series Waterproof Connectors for NEV Battery Systems
In new energy vehicles (NEVs), the power battery is not only the core energy source of the vehicle but also a critical factor influencing overall safety and system reliability. During real-world operation, battery systems typically work under high-voltage and high-current conditions while being continuously exposed to vibration, thermal shock, moisture, and dust. These conditions place very high demands on the stability of electrical connections.
Harsh Operating Conditions in NEV Battery Systems
In battery systems with high integration and high energy density, every connection point is directly related to the engineering reliability of the entire vehicle. This means that connectors used in battery systems must provide reliable performance in terms of dielectric strength, low contact resistance, high-temperature resistance, vibration resistance, and waterproof and dustproof capability.
Engineering Requirements for Connectors in NEV Battery Systems
Compared with conventional automotive electronics, NEV battery systems impose significantly more stringent engineering requirements on connectors. These requirements are mainly concentrated in two core application scenarios:
l Power Interconnects Within the Battery Pack
Connectors in this category are responsible for power transmission between battery cells or battery modules. They must maintain stable current-carrying capability, reliable electrical contact, and long-term durability under continuous operating conditions, effectively reducing risks associated with contact heating and system power loss.
l BMS Communication & Monitoring Interfaces
These connectors link the Battery Management System (BMS) with the battery pack, enabling real-time acquisition and transmission of critical parameters such as voltage, current, and temperature. Signal stability, environmental protection, and connection reliability are essential to ensuring safe and stable battery system operation.

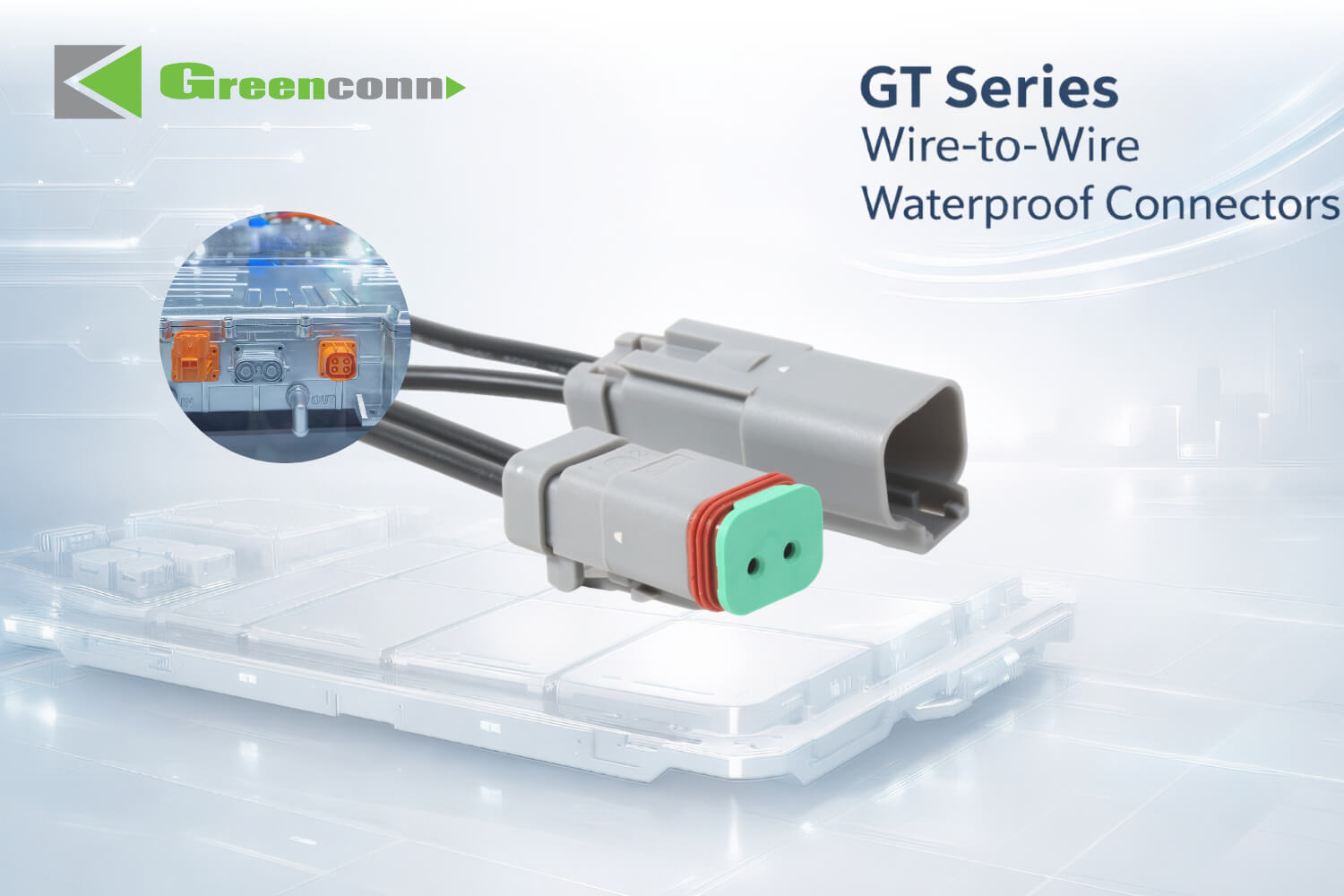

Greenconn GT Series Waterproof Connectors for Battery System Solution
GT Series Waterproof Connectors: Engineered for High-Reliability Battery Applications
To address the combined requirements of reliable current transmission and environmental adaptability within NEV battery systems, Greenconn has developed the GT Series waterproof connectors with targeted structural and performance-oriented design considerations.
The GT Series achieves protection ratings up to IP68 / IP6K9K, making it suitable for harsh environments involving high humidity and high-pressure water washing. With a rated current of up to 13A, the series supports mixed power and signal connectivity within battery systems. In addition, an auxiliary locking mechanism enhances mechanical strength and effectively reduces the risk of loosening under vibration, ensuring long-term connection stability.
Key Specifications
- Rated Current: 13A AC/DC Max
- Withstand Voltage: 1500V AC / 1 min
- Contact Resistance: ≤ 20 mΩ
- Operating Temperature Range: –55 °C to +125 °C
- Protection Rating: IP68 / IP6K9K
- Applicable Wire Gauge: AWG14–AWG20

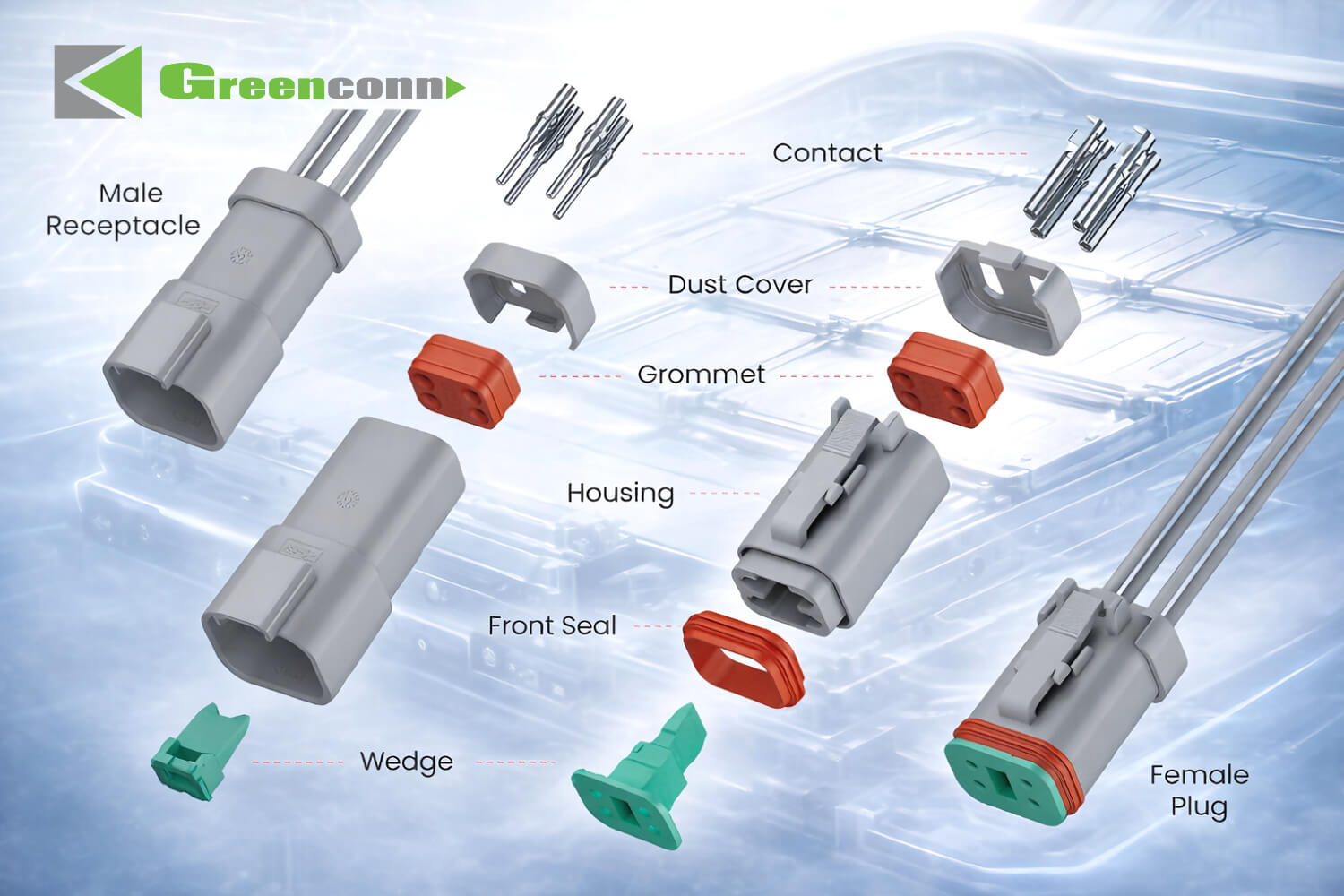

Structural Design Features of Greenconn GT Series Waterproof Connectors
Connectors as Critical Enablers of NEV System Reliability
As NEV adoption continues to accelerate, the industry is rapidly advancing toward a development stage characterized by electrification, intelligence, and high reliability. Ongoing upgrades in powertrain systems, intelligent control, and safety monitoring have made the stability of power and signal connections a fundamental element of system design.
In this context, connectors are no longer simple passive components. They have become critical engineering elements that directly influence system safety, performance, and long-term reliability. Leveraging strong engineering capabilities and deep application insight, Greenconn remains committed to delivering proven, reliable connectivity solutions tailored to the evolving needs of the new energy vehicle industry.
