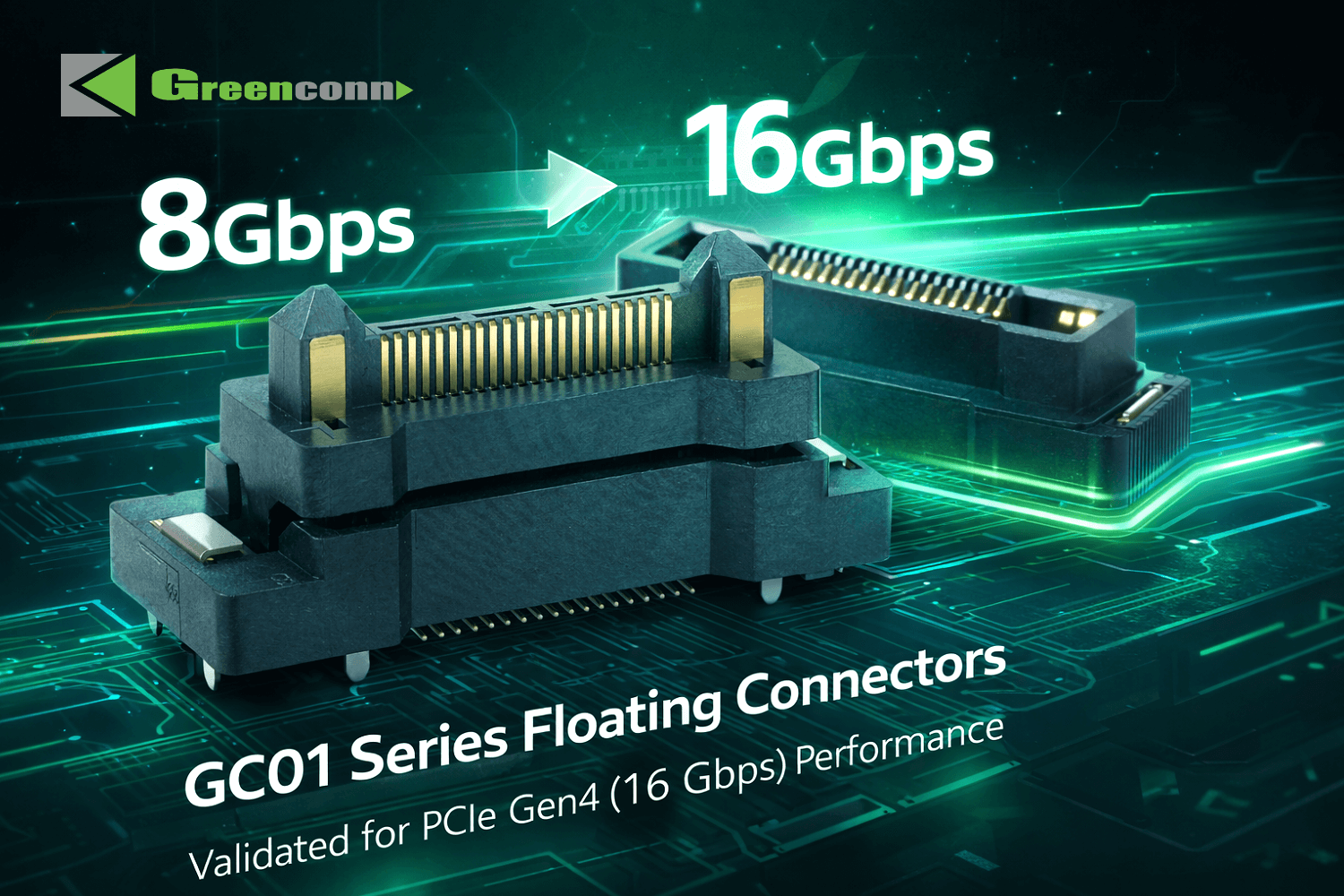

Greenconn GC01 Series Floating Connectors Validated for PCIe Gen4 (16 Gbps) Performance

As high-speed interfaces continue to expand across industrial control, robotics, and high-performance computing platforms, board-level interconnects are increasingly expected to deliver not just functionality, but verifiable signal integrity at elevated data rates.

Building on its established floating architecture and high-speed design, Greenconn’s GC01 Series (GGAC203 / CGAC203), 0.50 mm pitch floating board-to-board connectors, have undergone advanced signal integrity validation, confirming performance compliance with PCIe Gen4 (16 Gbps) requirements.

From 8 Gbps to 16 Gbps: Verified High-Speed Capability

Designed for high-speed differential signaling, the GC01 Series has completed comprehensive signal integrity (SI) testing in accordance with the PCI Express Card Electromechanical Specification, Revision 5.0.

Test results demonstrate that at a data rate of 16 Gbps, the GC01 Series meets the key electrical criteria defined for PCIe Gen4 links, including:

• Consistent differential impedance control (85 Ω reference)
• Insertion loss (IL) and return loss (RL) performance suitable for high-speed channels
• Effective mitigation of near-end and far-end crosstalk
• Well-controlled differential intra-pair delay matching
• Successful completion of 16 Gbps eye diagram validation

These results confirm that the GC01 Series has progressed beyond conventional 8 Gbps-class interconnects and is capable of supporting PCIe Gen4–level system designs, providing a robust interconnect solution for higher-bandwidth platforms.

Floating Compliance Optimized for High-Speed Signal Stability

In high-speed systems, mechanical tolerances and signal performance are closely coupled. Misalignment and assembly stress can directly impact signal integrity if not properly managed.

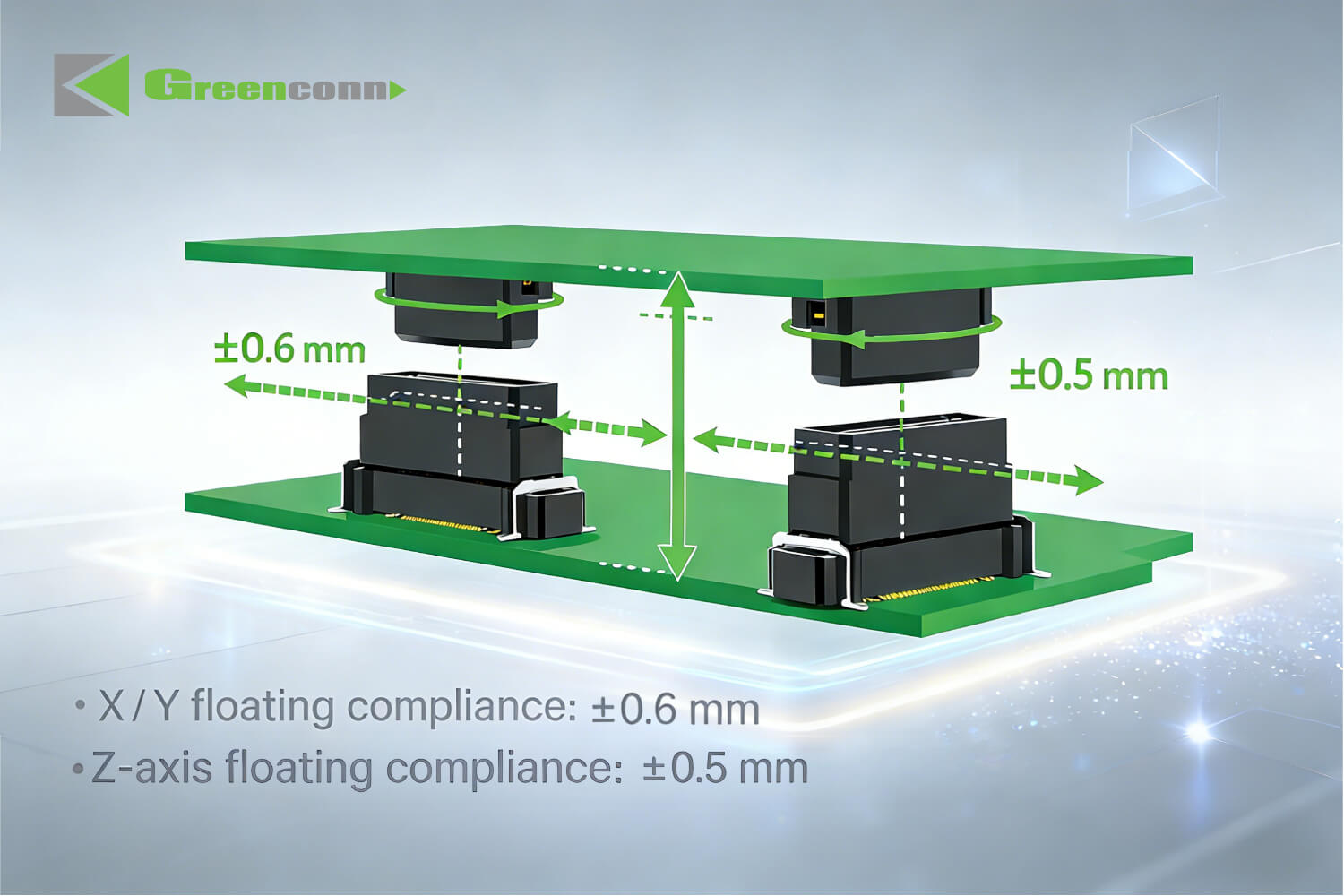

The GC01 Series addresses this challenge through a floating compliance structure that maintains stable signal paths while accommodating assembly variation:

• X / Y floating compliance: ±0.6 mm
• Z-axis floating compliance: ±0.5 mm

This design approach is particularly beneficial in multi-board architectures and high-density stacking configurations, where it helps improve assembly yield and reduces the risk of signal degradation caused by mechanical misalignment.•

Designed for High-Speed Internal Board-Level Interconnects

As internal data rates continue to rise in applications such as intelligent driving systems, industrial automation, and robotics, connectors must simultaneously support high-speed signal integrity and mechanical robustness.

The GC01 Series floating connectors are engineered to meet these requirements for internal board-level interconnects. Their electrical and mechanical characteristics support reliable operation under high data-rate conditions, making them suitable for applications including:

• High-speed board-to-board links between computing and control modules in intelligent driving systems
• High-speed signal and control paths within industrial automation equipment
• Multi-board interconnects in robotic and collaborative robotic systems
• Architectures requiring parallel transmission of high-speed data and control signals across multiple PCBs

In these environments, floating compliance helps absorb assembly tolerances, while PCIe Gen4 (16 Gbps)–validated signal integrity provides confidence in stable system operation at higher bandwidths.

(Greenconn’s floating connector applications)

Materials and Construction for Long-Term High-Speed Reliability

• High-temperature LCP housing designed for demanding operating conditions
• Gold-plated phosphor bronze contacts to ensure low contact resistance and electrical stability
• SMT-compatible structure supporting high-density PCB layouts and manufacturing efficiency
• Designed to meet industrial-grade operating temperature and durability requirements

Together, these design elements support long-term reliability of the GC01 Series in high-speed applications.

By validating its performance through PCIe Gen4 (16 Gbps) signal integrity testing, Greenconn has extended the GC01 Series beyond traditional high-speed interconnect solutions. The result is a floating board-to-board connector platform well suited for next-generation industrial, robotics, and high-performance electronic systems requiring deterministic, high-bandwidth internal interconnects.
